Steps To Create Cordova Plugin


  • Introduction

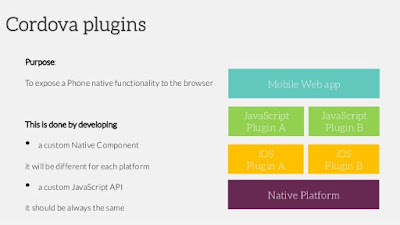

    • A plugin is a package of injected code that allows the Cordova webview within which the app renders to communicate with the native platform on which it runs.
    • Plugins comprise a single JavaScript interface along with corresponding native code libraries for each supported platform.
    • Due to following reason, we will go for plugin development
      • To get the native capabilities of the device in the cordova based app
      • Build the common functionality across the number of Cordova application(Reusability)













  • Prerequisites

    • For the creation of plugin you need to install plugman.
      • npm install -g plugman

  • Plugin Structure

    • Decide Plugin ID & Name
      • The plugin ID should be unique
      • Plugin name should follow the convention “cordova.plugin.[your.plugin.name]”
    • Create the structure
      • Use the following command to create the plugin with plugin ID “cordova.plugin.test” and name “Test”.
        • plugman create --name Test --plugin_id cordova.plugin.test --plugin_version 0.0.1
      • With the success of above command if check the our working directory then we got the result like
Test/
|- plugin.xml
|- src/
\- www/
   \- Test.js
  • Implement The Native Functionality

    • For each platform, you will add a folder under the src folder, also some entries in plugin.xml

    • Android Platform

      • To start with android platform please execute the following command
        • plugman platform add --platform_name android
      • With the success of above command if check the our working directory then we got the result like
Test/
|- plugin.xml
|- src/
|  \- android/
|     \- Test.java
\- www/
   \- Test.js
    • IOS Platform


      • To start with ios platform please execute the following command
        • plugman platform add --platform_name ios
      • With the success of above command if check the our working directory then we got the result like
Test/
|- plugin.xml
|- src/
|  |- android/
|  |  \- Test.java
|  \- ios/
|     \- Test.m
\- www/
   \- Test.js

    • Windows Phone Platform

      • The native code for Windows and Windows Phone 8.1+ is slightly different from other platforms. While it is possible to implement the functionality using C# or C++, the native APIs are actually available via JavaScript, and it is usually easiest that way.
      • Currently, plugman does not currently support the windows platform, So creates structure manually as follows
Test/
|- plugin.xml
|- src/
|  |- android/
|  |  \- Test.java
|  \- ios/
|     \- Test.m
|  \- windows/
|     \- Test.js

\- www/
   \- Test.js


  • References
